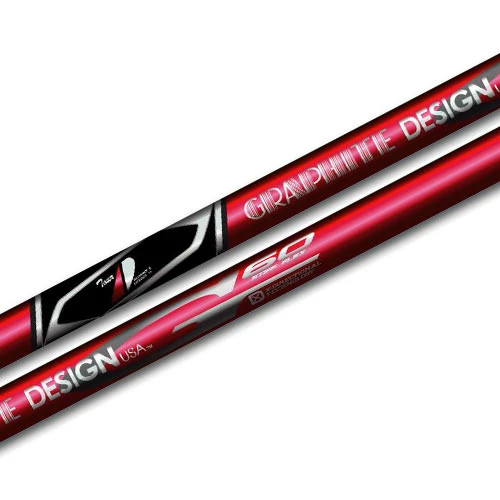

Graphite Design G Series Red Wood Shafts

Overview

The G Series Red shaft with X Directional Technology (XDT) is the next generation of premium Graphite Design shafts and is designed to be very adaptable to today’s new head technology. Available in six weight categories, the G-Series wood shafts offer a wide range of shaft weights and launch angle characteristics to golfers of all skill levels. The G Series lighter weight 40g and 50g series offer a mid/high launch angle, the mid weight 60g and 70g series produce a piercing mid launch trajectory and the heavier 80g and 90g series favors a low/mid ball flight.

Graphite Design’s latest technology, X Directional Technology (XDT) incorporates the use of the already proven Graphite Design MSI (Material Stiffness Integration) design method as well as this new and unique application of graphite fiber ply angle alignment throughout the shaft structure. During the development phase of XDT, measurable performance gains were discovered through a more balanced distribution of the graphite fiber angles within the piles of the shaft design. This proprietary application of XDT has made the new G-Series the most balanced, versatile high performance golf shaft available today.

G-series and X Directional Technology (XDT), the next “Generation” in golf shaft design.

Features

• XDT Technology for the most balanced, versatile high performance golf shaft available.
• 40 ton, high modulus, aerospace quality carbon fiber materials.

Specifications

Shaft Type	Flex	Length	Wt.	Tip OD	Tip Para.	Butt OD	Torque	Kick pt	Launch	Spin
G 40 RR	Lite	46″	49g	.335″	2.5″	.598″	5.8	LOW	HIGH	MID
G 40 R	Regular	46″	50g	.335″	2.5″	.600″	5.8	LOW	HIGH	MID
G 40 S	Stiff	46″	52g	.335″	2.5″	.602″	5.8	LOW/ MID	MID/ HIGH	MID
G 50 RR	Lite	46″	59g	.335″	3.0″	.600″	4.2	LOW/ MID	MID/ HIGH	MID
G 50 R	Regular	46″	59.5g	.335″	3.0″	.600″	3.9	LOW/ MID	MID/ HIGH	MID
G 50 S	Stiff	46″	60.5g	.335″	3.0″	.602″	3.9	LOW/ MID	MID/ HIGH	MID
G 60 R	Regular	46″	66.5g	.335″	3.0″	.600″	3.3	LOW/ MID	MID/ HIGH	MID
G 60 S	Stiff	46″	68g	.335″	3.0″	.602″	3.3	MID	MID	MID
G 60 X	X-Stiff	46″	70.5g	.335″	3.0″	.604″	3.3	MID	MID	MID
G 70 S	Stiff	46″	75.5g	.335″	3.0″	.604″	3.1	MID	MID	MID
G 70 X	X-Stiff	46″	77.5g	.335″	3.0″	.606″	3.1	MID	MID	MID
G 80 S	Stiff	46″	84g	.335″	3.0″	.608″	2.9	MID/ HIGH	LOW/ MID	LOW
G 80 X	X-Stiff	46″	86.5g	.335″	3.0″	.610″	2.4	MID/ HIGH	LOW/ MID	LOW
G 90 S	Stiff	46″	94g	.335″	3.0″	.612″	2.6	HIGH	LOW	LOW
G 90 X	X-Stiff	46″	96g	.335″	3.0″	.614″	2.6	HIGH	LOW	LOW
